Si-Tex MDA-5 Hi-Power 5W SOTDMA Class B AIS Transceiver w/Built-In Antenna Splitter & Long Range Wi-Fi w/ Free S&H

Si-Tex Hi-Power 5W SOTDMA Class B AIS Transceiver w/Built-In Antenna Splitter & Long Range Wi-Fi MDA-5 74076
Si-Tex Hi-Power 5W SOTDMA Class B AIS Transceiver w/Built-In Antenna Splitter & Long Range Wi-Fi MDA-5 74076
1 of 1 images

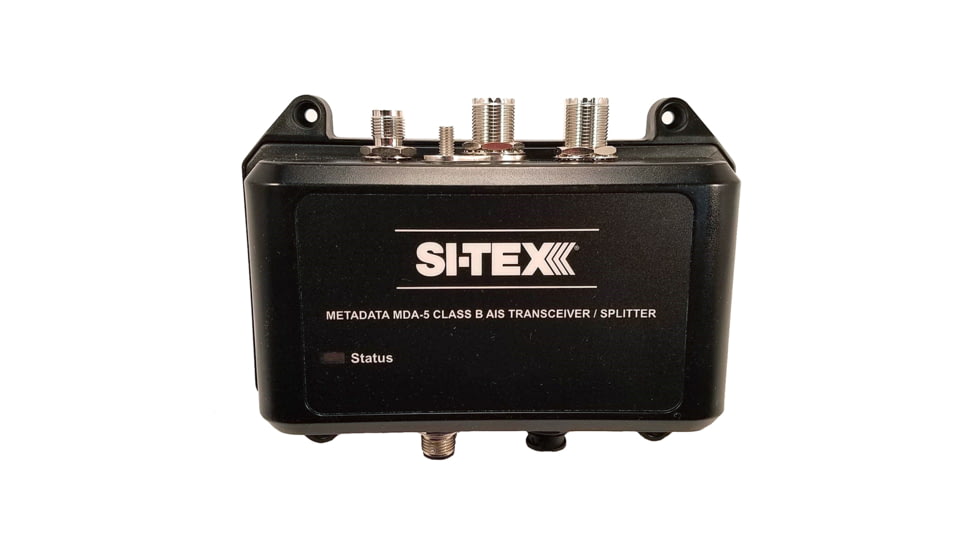

Si-Tex Hi-Power 5W SOTDMA Class B AIS Transceiver w/Built-In Antenna Splitter & Long Range Wi-Fi MDA-5 74076

Tap Tap to Zoom

Questions & Answers

New Product

See more new Si-Tex Hunting Equipment items
We’ve just added this new product to Armabear. Be the first to get it!
Color:
Black

Code: 35N-XA-CWR10729-MDA-5

MPN: MDA-5

UPC: 010407510705

List: $1,429.00Save 11%
$1,269.00
AB Rewards$25.38

Product Info for Si-Tex MDA-5 Hi-Power 5W SOTDMA Class B AIS Transceiver w/Built-In Antenna Splitter & Long Range Wi-Fi

Specifications for Si-Tex MDA-5 Hi-Power 5W SOTDMA Class B AIS Transceiver w/Built-In Antenna Splitter & Long Range Wi-Fi:

Manufacturer: Si-Tex
Color: Black

Features of Si-Tex MDA-5 Hi-Power 5W SOTDMA Class B AIS Transceiver w/Built-In Antenna Splitter & Long Range Wi-Fi

  • The MDA-5 is the world's most sophisticated fully certified 5-Watt SOTDMA Class B AIS Moble on the market
  • 5-Watt transmitter power Higher Output power means your vessel will be seen at longer ranges by other vessels and via AIS websites
  • SOTDMA Class A Priorities means that your vessel will always transmit and be seen in very congested Commercial Harbors and Ports where traditional Class B units don"t have network priority.
  • Intergrated zero loss VHF antenna splitter - no second antenna needed
  • Built-In 802.11 b/g/n Long Range WIFI allows unit to send AIS and Position data to any WIFI connected devices
  • NMEA-0183 data port NMEA-2000 & USB intelligent connectivity to all bridge systems
  • Built-In GPS & GLONASS satellite navigation receiver
  • Water Proof certified to IPX7
  • Dual Receivers decodes all DSC & AIS messages including MOB & SART
  • Ultra-power efficient
  • IEC-62287-2 FCC and USCG certified
  • 2 Year Warranty
  • Package Includes:Commercial Grade External GPS Antenna with Coax Cable
  • Mounting hardware
  • Power & Data Interface cable
  • VHF Radio Connection cable
  • Product Information DVD with ProAis2 Software for Programming & Troubleshooting
  • User Manual & Quick Start Guide
  • Transmitter Output Power: 5 Watts
  • VHF Antenna Connector SO-239 UHF
  • GPS Antenna Connector TNC
  • Frequency Range: 156.025 _ 162.025 Mhz
  • Input Voltage: 9.6 _ 31.2 VDC
  • Current Draw: 220mA average power consumption
  • Operating Temperature Range: -25C to +55xC
  • Ingress Protection: IP67
  • Dimensions (transceiver): 6.8" W x 5.0" H x 2.0" D
  • Weight 0.8 lbs.

Package Contents:

  • Si-Tex MDA-5 Hi-Power 5W SOTDMA Class B AIS Transceiver w/Built-In Antenna Splitter & Long Range Wi-Fi

Si-Tex MDA-5 Hi-Power 5W SOTDMA Class B AIS Transceiver w/Built-In Antenna Splitter & Long Range Wi-Fi Orderable Models

List of Orderable Models

  • Si-Tex Hi-Power 5W SOTDMA Class B AIS Transceiver w/Built-In Antenna Splitter & Long Range Wi-Fi MDA-5, MDA-5 , MPN: MDA-5 , UPC: 010407510705 , Code: 35N-XA-CWR10729-MDA-5
