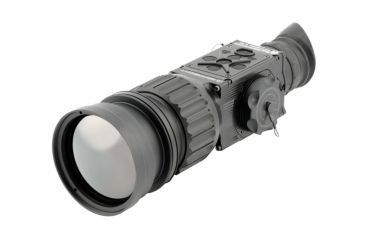

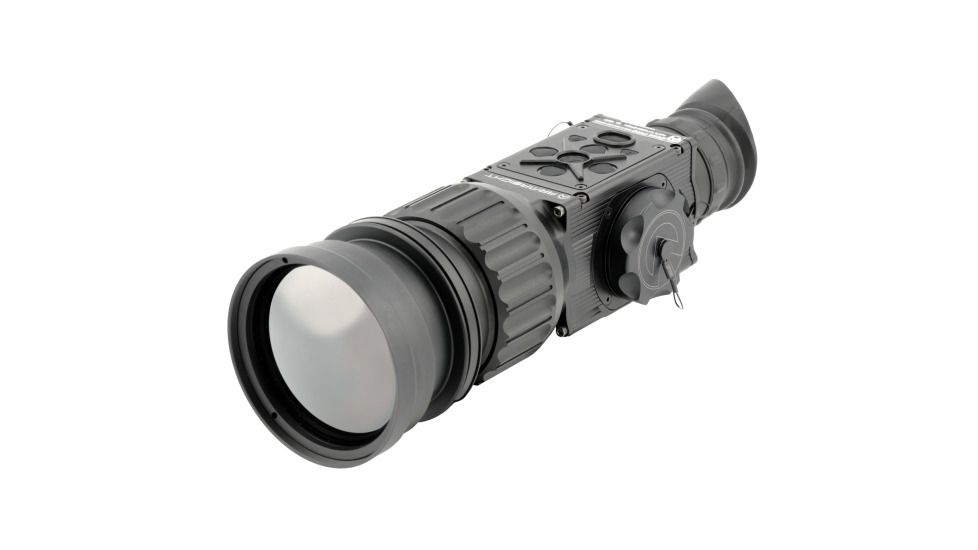

Armasight Prometheus-Pro 336 8-32x100,30hz Thermal Imaging Monocular, FLIR Tau 2, 336x256 17 30hz Core, 100mm Lens TAT173MN1PPRO81
2 of 2 images
Armasight Prometheus-Pro 336 8-32x100,30hz Thermal Imaging Monocular, FLIR Tau 2, 336x256 17 30hz Core, 100mm Lens TAT173MN1PPRO81
Tap Tap to Zoom
Documents
Questions & Answers
We’ve just added this new product to Armabear. Be the first to get it!
- Magnification:
- 8 - 32 x
- Color:
- Black
- Resolution:
- 256x336 pixels
- Refresh Rate:
- 30 Hz
- Condition:
- Factory DEMO
Code: 0A-THM-PRMTHP8-TAT173MN1PPRO81-DEMO
MPN: TAT173MN1PPRO81-DEMO
Final Sale
List: $8,495.00Save 60%
$3,399.00
AB Rewards$67.98
Product Info for Armasight Prometheus-Pro 8-32x100mm Thermal Imaging Monocular w/FLIR Tau 2
Specifications for Armasight Thermal Imaging Monocular - Prometheus Pro 336:
| Objective Lens Type: | Germanium |
| Magnification: | 8x-32x |
| Type of Focal Plane Array: | FLIR Tau 2 |
| Pixel Array Format: | 336x256 |
| Pixel Size: | 17 um |
| Refresh Rate: | 30 Hz |
| Display Type: | AMOLED SVGA 060 |
| Objective Focal Length: | 100 mm |
| Objective F-number: | 1:1.4 |
| Focusing Range: | 10 m to inf. |
| Battery Life: | > 6 hr (optional up to 14 hours) |
| Battery: | 4 each 123A 3.0VDC or 4 each AA 1.5VDC (Optional Extended Battery Pack with rechargeable batteries (up to 8 hours) or 6 VDC/ 1А external power source) |
| Operating Temperature: | -51 to +57°C (-59 to +134°F) |
| Storage Temperature: | -57 to +85°C (-70 to +185°F) |
| Dimensions: | 265 х 90 х 90 mm / 10.4×3.5×3.5 in |
| Weight: | 1.15 kg / 2.5 lbs |
| Warranty: | 3 Years (10-year warranty on FLIR detector) |
Features of Armasight Prometheus-Pro 8-32x100mm Thermal Imaging Monocular w/FLIR Tau 2:
- 24/7 Operation in presence of environmental obscurants (smoke, dust, haze, fog)
- Superior engineering and design from inception to Armasight's 20/50 standard
- Rugged MIL-STD-810 compliant performance
- Operates on 123A or AA batteries
- Objective Germanium Lens Options
- TAU-2 17um Pitch Thermal Sensor
- SVGA 800x600 OLED Display
- Digital Compass
- Digital Inclinometer
- Battery Status Indicator
- Selectable Palettes: White Hot/ Black Hot/ Sepia/ OEM Custom/ Other
- Color Variants
- Wireless 5-button Remote
- Tracking Digital e-Zoom: 2x / 4x / 8x (640x512 only)
- Still Picture and Video Recording Capability (Mounted DVR Option)
- Active Contrast Enhancement (ACE) - a digital "Contrast" correction that allows for a smart scene optimization based on dynamic adjustments where a variety of contrast levels occur depending on relative scene temperature.
- Second Generation Digital Detail Enhancement (DDE) - a "Sharpness" correction that is digitally enhances the picture to present clearer imagery, significantly improves edge sharpening and further reduces image noise.
- Smart Scene Optimization (SSO) - a fine-tuning computational correction that significantly improves an overall visual acuity for targets that have thermal signatures similar to a surrounding background.
- Information Based Histogram Equalization (IBHEQ) - a "Sky/Sea" enhancement - information based environment dependent algorithm that automatically adjusts camera gain and excludes pixels determined to not contain critical information, specifically helpful in scenes with lots of sky or water.
- User Controlled Manual Non Uniformity Correction/Flat-Field Correction (UCMNUC/FFC). There is a mechanical shutter between the camera sensor and the lens. This shutter is used to perform a non-uniformity correction (NUC) also known as flat-field correction (FFC. During FFC, the shutter presents a uniform temperature source to each detector element in the array. While imaging the flat-field source, the camera updates the offset correction coefficients, resulting in a more uniform image after the process is complete. All Armasight thermal imagers allow for user to manually trigger or interrupt scheduled UCMNUC/FFC function.
- Silent Shutterless NUC™ (SSN) - In addition to user controlled manual NUC/FFC all Zeus models employ a digital supplemental non-mechanical flat-field correction that allows to extend the periods between mechanical shutter events and to further reduce image noise. SSN is always ON enhancement.
- Works with Armasight's Enhanced Mobile Applications

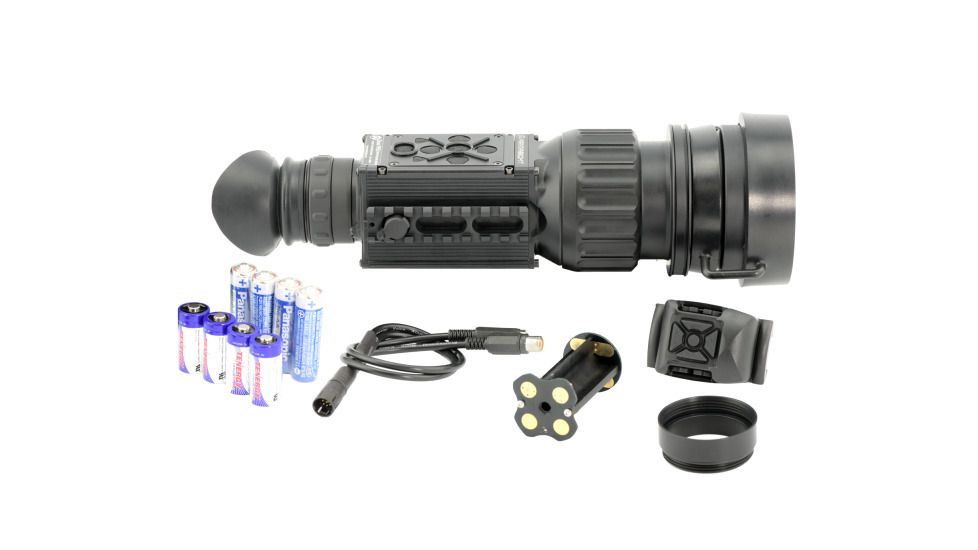

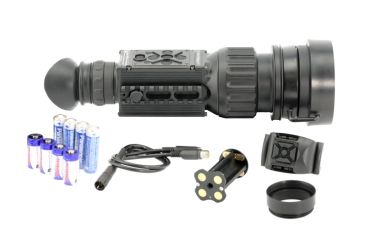

Package Contents:
- Armasight Prometheus-Pro 8-32x100mm Thermal Imaging Monocular w/FLIR Tau 2
Armasight Prometheus-Pro 8-32x100mm Thermal Imaging Monocular w/FLIR Tau 2 Orderable Models
List of Orderable Models
- DEMO, Armasight Prometheus-Pro 336 8-32x100,30hz Thermal Imaging Monocular, FLIR Tau 2, 336x256 17 30hz Core, 100mm Lens TAT173MN1PPRO81 , MPN: TAT173MN1PPRO81-DEMO , Code: 0A-THM-PRMTHP8-TAT173MN1PPRO81-DEMO
Armasight Prometheus-Pro 8-32x100mm Thermal Imaging Monocular w/FLIR Tau 2 Unavailable & Discontinued Models
List of Unorderable Models
- Armasight Prometheus-Pro 336 8-32x100,30hz Thermal Imaging Monocular, FLIR Tau 2, 336x256 17 30hz Core, 100mm Lens TAT173MN1PPRO81 , MPN: TAT173MN1PPRO81 , UPC: 849815004878 , Code: 0A-THM-PRMTHP8-TAT173MN1PPRO81
- Armasight Prometheus-Pro 336 8-32x100,60hz Thermal Imaging Monocular, FLIR Tau 2, 336x256 17 60hz Core, 100mm Lens TAT176MN1PPRO81 , MPN: TAT176MN1PPRO81 , UPC: 849815004885 , Code: 0A-THM-PRMTHP8-TAT176MN1PPRO81
